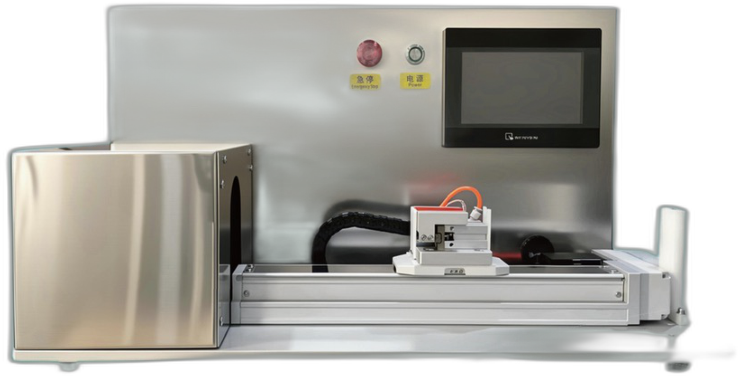

Marker Ring Swaging Machine
CGT-DRFP-1000
A touchscreen- and PLC-controlled swaging machine that drives a sealed linear-screw mechanism for high-precision swaging of catheter tubing and marker rings — eliminating operator variation.
Swaging without
operator variation.
Traceable by design
Automated, repeatable, compact.
A sealed linear-screw mechanism delivers consistent repeat positioning and reduced defects, supporting a maximum swaging length of 240 mm across various tubing specifications.
Capabilities
Precision swaging, automated
Eliminates operator variation
Touchscreen + PLC lock swaging parameters, removing reliance on operator experience.
High yield in continuous production
A sealed linear-screw mechanism ensures consistent repeat positioning and reduced defects.
Multi-size compatibility
Software and tooling support multiple tubing specifications — no machine change when switching.
Long-term stability & durability
A robust structure and reliable control give low failure rates and minimal recalibration.
Compact, space-saving design
A small footprint saves valuable production space.
Specifications
Technical details
- Model
- CGT-DRFP-1000
- Max swaging length
- 240 mm
- Dimensions
- 720×440×350 mm
- Weight
- 40 kg
- Rated working pressure
- 0.4–0.8 MPa
- Power input
- 240 W (max.)
- Operators
- 1
- Power supply
- Customizable voltages
