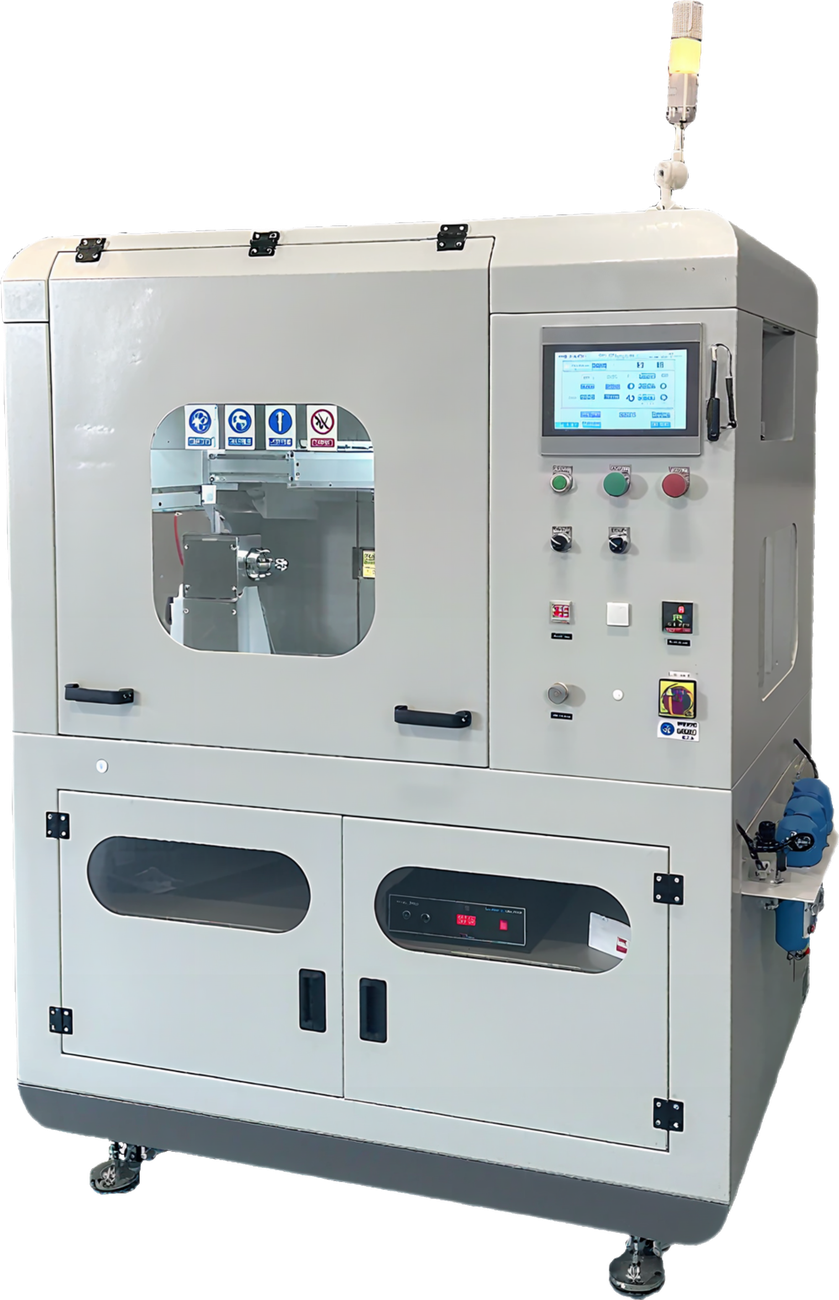

Balloon Ultrasonic Coating System
UBM-USS-1000
Ultrasonic spray coating equipment for applying pharmaceutical coatings to drug-coated balloons, with integrated drug dispersion, temperature and humidity control.
Even coatings,
up to 95% utilization.
Traceable by design
Controlled to the last micron.
A digital multi-closed-loop power controller (0.01 W accuracy) and high-frequency side-feed head deliver a mean particle size of 18 μm and film from 10 nm to 100 μm, with X/Y/Z + rotary motion and laser-assisted alignment.
Capabilities
Uniform films, less waste
Highly integrated system design
Motion, ultrasonic atomization, liquid supply, heating, software and exhaust in one platform.
Easy installation & mobility
A floor-standing design with integrated casters for easy movement in cleanrooms.
95% material utilization
Low-speed, gentle spraying prevents over-coating and cuts material use by up to 80%.
Reduced maintenance downtime
A self-cleaning spray-nozzle design prevents clogging and minimizes downtime.
Customized visualization & control
A 10-inch HMI, three-level access control, and storage for up to 10,000 coating programs.
Specifications
Technical details
- Model
- UBM-USS-1000
- Mean particle size
- 18 μm
- Spray width
- 1–8 mm
- Film thickness
- 10 nm–100 μm
- Flow rate
- 0.01–2 mL/min
- Motion
- X/Y/Z + rotary, ±0.02 mm
- Max speed
- X/Y 300 mm/s, Z 50 mm/s
- Control
- 10-inch HMI, 3-level access
- Liquid supply
- Syringe pump, 10 mL Hamilton
- Power / gas
- 220 VAC 50/60 Hz; dry air or N₂ at 0.05 MPa
- Footprint
- 1800×1100×1940 mm
